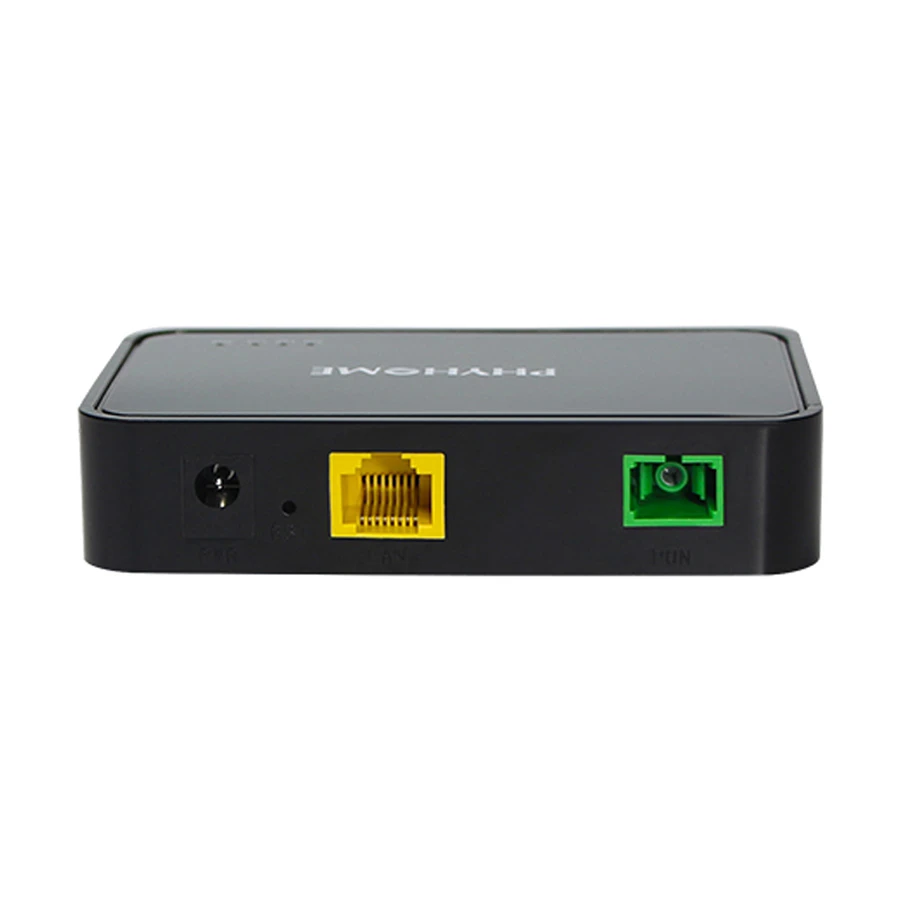

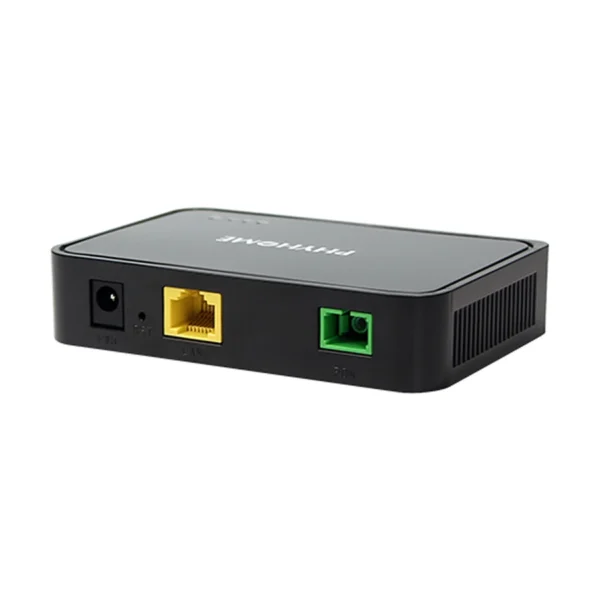

Phyhome P3 Black GPON 1G ONU

Name: Phyhome P3 Black GPON 1G ONU - Black Bird Gadgets
Price: 1310.00 BDT
Availability: InStock

0 customer reviews

Sold: 0

Vendor: blackbirdgadget1@gmail.com

Original price was: 1,450.00৳ .Current price is: 1,310.00৳ .

7 Days Returns policy
No Warranty

Buy Now

Add to cart

Category: ONU

Phyhome

Product Description

Brand

Phyhome

Model

Phyhome P3

PON Interface

1 x SC/UPC GPON

PON Port Connector Type

SC/UPC

PON Port Transmission Distance

20KM

PON Port Wavelength

Tx 1310nm, Rx 1490nm

PON Port TX Power

1 – 5dBm

PON Port Rx Sensitivity

<-28dBm

Data Transmission PON Throughput

Upstream: 1.244Gbps, Downstream: 2.488Gbps

Ethernet Interface Transmission Distance

1 x 1000Mbps RJ45 LAN

Network Management

Unmentioned

Power Supply

DC 12V 0.5A

Approx. Power Consumption

<= 3W

Operating Temperature

-10 – 50 Degree C

Operating Humidity

10% – 90%, non-condensing

Storing/Storage Temperature

-40 – 70 Degree C

Storing/Storage Humidity

5% – 90% non-condensing

Dimension

104 x 70 x 22mm

Feature

Bridge or Route Mode, Multiple Management Methods, Compatible ITU-T G.984.x GPON Standard, Compatible With Most OLT Vendors.

Others

Protocol Standards: ITU-T G.984.x, Buttons: Reset Button, Certifications: CE, RoHS. Protocol :1Pv4, IPv6, Firewall security: DoS, SPI firewall, IP address filtering/MAC address filtering/domain filtering, IP address, MAC address binding. Color: White.
